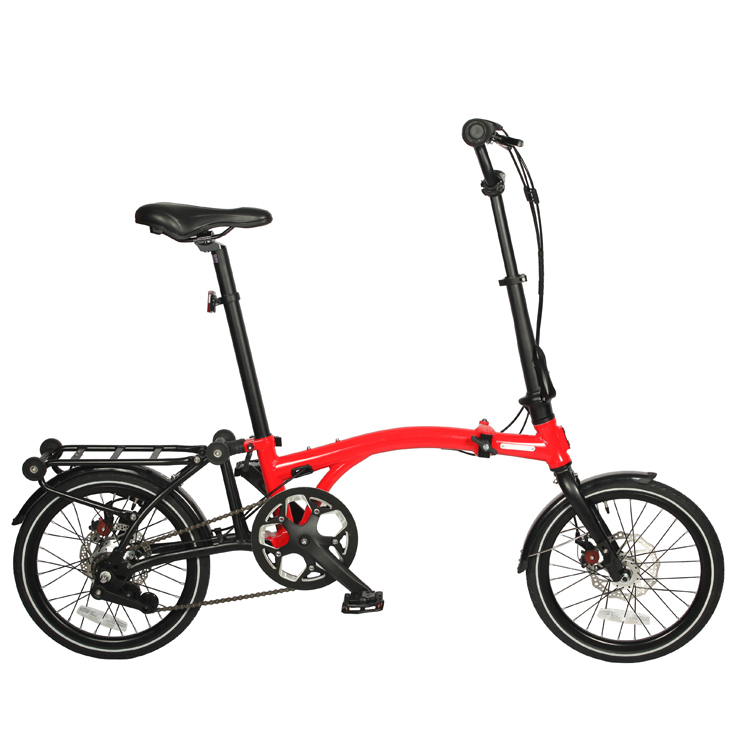

Pedals assistant power hidden design Ig battery 6.8ah 36V 250W 16 inch mini folding electric bike

Pedals assistant power hidden design Ig battery 6.8ah 36V 250W 16 inch mini folding electric bike

16"*1.75-1.95, New European Standard Certification, UL certification, Electric bikes, Sturmey archer three speed internal home run method derailleur system, New digital display thumb shifter,


Product Detail

Product Tags

H666911a07bbf4c79810d427410271c89d H7841edda7e7f487c80907ab87530d2fey H910b3b7682874b70ad9b64ffe930166fY

Description:

16″*1.75-1.95, New European Standard Certification, UL certification, Electric bikes, Sturmey archer three speed internal home run method derailleur system, New digital display thumb shifter, “The front and rear Tektro disc brakes, Wellgo aluminum folding pedal, Integrated handlebar cover, LASCD aluminum alloy crank wheel, 250W-350W motor, Speed – Torque Sensor, Single – double mode, 0-6 km slow start, 25 km of power off, Samsung 3500 cell, 6.8 AH, 5 gear LCD display, Cruise control .

 微信图片_20210607133920

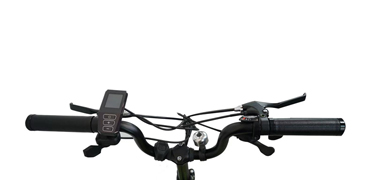

LCD Display

STURMEY ARCHER INTERNAL 3-speed grip shifter

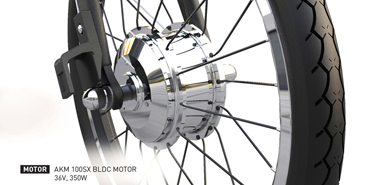

250W-350W motor  헥사데카 디테일

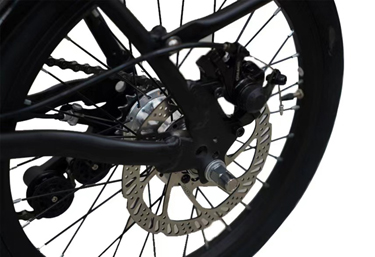

 微信图片_20210607133932 Rear Disc brake

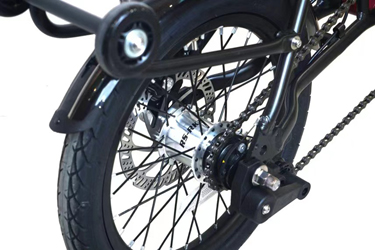

STURMEY ARCHER INTERNAL 3-stage rear derailleur  微信图片_20210607133936



Specification:

Driving method

Throttle lever (cruise function)/PAS 1-5 steps

Stem

Aluminium Alloy 6061 folding BK

Driving distance

About 60km (flat, passengers 75kg, 1st stage)

Rear derailleur

STURMEY ARCHER INTERNAL 3-stage rear derailleur

Battery

Samsung SDI 35E 36V, 6.8Ah (Separate charge based on convenience) charging time: 2-3 hours

Shift lever

STURMEY ARCHER INTERNAL 3-speed grip shifter

Display

LCD Display (USB Charging Function)

Crank

3/32*52T CNC steel crank with Aluminium Alloy 6061 cover

Motor

36V 350W Front Hub Motor

Seat post

Aluminium Alloy 6061

Charger

INPUT:100-240V.2.0A(MAX)50/60Hz/ OUTPUT:42.0V~2.0A

Tire

16”*1.75 or 1.95” CST

Frame

Aluminum Tri-folding frame

Carrier

Aluminum Carrier, W / 4-PCS RAIL

Fork

Aluminum Rigid Fork

Pedal

Aluminum Body One Touch Folding Pedal

Handlebar

Aluminium Alloy 6061 22.2.25.4*560mm

Weight

Bicycle 14 kg / Battery 1.23 kg

Brake

Inner SPSE caliper brakes

Folding Size

730*330*670mm



Packing and Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Capacity of 1*20ft: 133pcs; 1*40HQ: 335pcs;

包装图

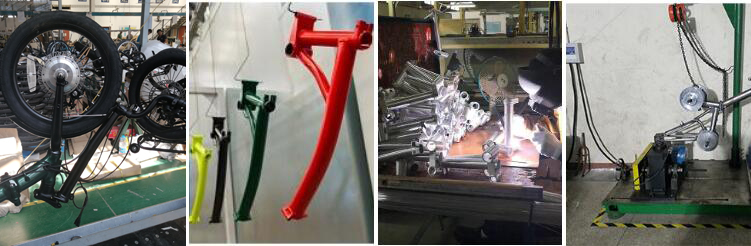

Our advantage:

-We are factory with more than ten years production and export experience
-We have our own frame workshop, painting workshop, and assemble workshop
-Professional design and R & D team, can design product lines and products for clients
-Near Tianjin port, with high efficiency, can help customers save freight

详情页4

Application:

The folding ebike ride up hills, into the wind and fly between meetings; always arriving fresh. Its ride position and agility are more than a match for conventional bicycles. Small wheels mean fast acceleration from red lights and increased mobility through busy streets.
