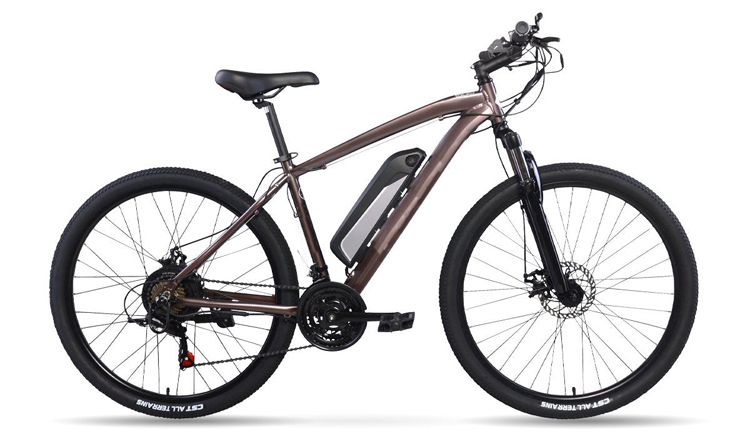

China manufacturer 27.5 inch mountain bicycle MTB ebike 36v 350w electric bike

China manufacturer 27.5 inch mountain bicycle MTB ebike 36v 350w electric bike

It is the ultimate Dual Sport eBike for adventurers to commuters alike.

It boasts a lightweight alloy frame, 27.5” wheels, disc brakes and a front suspension with 50mm of travel that can take on all terrains.

It comes with CST semi knobby tires which gives a great balance for road, gravel, and off-road riding.

Equipped with Shimano 3×7, 21 speed technology for a wide range of gears to tackle any climb on your ride.


Product Detail

Product Tags

electric bike

Description

It offers a 350W rear hub motor, 36-volt lithium-ion Greenway battery, and a max range of 28 miles. The LED display shows your assistance and battery level, indicating when it is time for your next 6-hour charge. Top speed is 20 MPH and extras include a bell and a unique power shut-off braking function that will extend the range of your battery.

This chameleon can take you anywhere from the city to the trails and beyond. This bike is a force to be reckoned with so get on and enjoy.

  • MOTOR/BATTERY: 350W Rear Hub Motor, 36-volt Lithium-Ion Greenway battery
  • FRAME/FORK: Alloy frame with 27.5″ suspension fork with 50mm of travel and disc brakes
  • Charge time: 6 Hours
  • 28 Mile Range
  • Power shut-off brake levers
  • EXTRAS: Bell, Braking/Motor Shut-off feature

Specification

Frame:

27.5″, Alloy, BC 1.37″x24t, disc

Fork/Suspension:

Disc brake, 27.5″, 50mm travel

Wheelset:

Alloy, double wall, 27.5″, 36h

Tires:

CST 27.5×1.95″

Shifters/Brake Levers:

Shimano 3x7s, power shut-off brake levers

Front Derailleur:

Shimano 3s FD-TZ500

Rear Derailleur:

Shimano Tourney 7s TZ500

Crankset:

42x34x24t, 170mm

Bottom Bracket:

Square taper, cartridge, 68×122.5mm

Cassette/Freewheel:

Shimano 7s, 14-28t

Chain:

KMC 7s

Pedals:

Platform, 9/16″

Handlebar:

Alloy 31.8x680mm

Stem:

Alloy, 90mm

Headset:

28.6x34x30mm

Grips/Tape:

Black, rubber

Brakeset:

Mechanical Disc brake w/ 160mm rotor

Saddle:

Black

Seat Post/Clamp:

Alloy 30.4x350mm

Extras Included:

Bell

Manufacturers Warranty:

Frame: Lifetime, Parts & Components: 1 year

Battery Type:

Frame mount

Batteries Included:

Yes

Batteries Needed:

36V/7.8AH,2600MAH, 9 cells

Top Speed:

20 MPH

Drive Mode:

4 levels, Throttle and Pedalec

Display Accessories:

LED

Readouts:

POWER ON/OFF, battery level, assistance level

Display Type:

LED

Estimated Max Range:

28 Miles

Estimated Min Range:

22 Miles

Charge time:

6 Hours

Battery Chemistry:

Lithium-ion

Battery Watt Hours:

374Wh

Battery Amps:

10.4Ah

Battery Voltage:

36V

Battery Brand:

Greenway

Motor Torque:

18 N.m

Motor Peak Output:

380 W

Motor Nominal Output:

350W

Motor Type:

Rear hub

Motor Brand:

MXUS

Our service

*Good after-sale service ensure you no more worries
*Sample and small trial orders are available
*Strict quality control system with experienced QC team
*Your ordered goods will be packed in good condition
*All our products are no harm to environment

Shipping

shipping

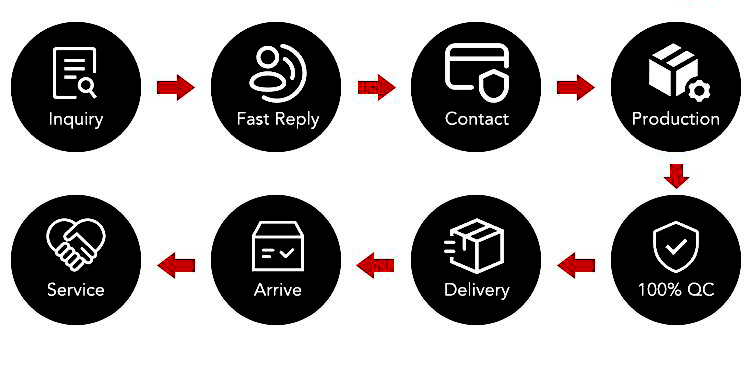

Order Process

order process

Business Partner

Cooperation Partner

We do OEM for TUWINN, BIANCHI, KAWASAKI, MONGOOSE, BOBBIN, ANNCHER etc. 90% of our orders are OEM or ODM.

FAQ

1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check. It takes about 3-4weeks to get the sample bikes ready after receipt of your full sample payment.
2. Q: What is your minimum order quantity?
A: Our MOQ is 1*20ft container, the models and colors can be mixed in this container, normally we request MOQ per model/color: 50pcs.
3. Q: Do you accept OEM customer’s orders?
A: Yes, we can make the bicycle according to customer’s specification, color combination and even logo/design, as well as package request.
4. Q: Do you have the products in stock?
A: No. All bikes are to be produced according to your order including samples.
5. What’s your bike quality situation?
A: It is the fact that what we manufactured are all in middle/high quality classes in the world market, closing to the A-brand in the world. While, different countries have different quality standard, such as CPSC in America, CE in European market, our bike quality may change a little, according to standard and regulations in the destination sales countries.
6. What is your terms of packing?
A: Generally, we pack our goods in neutral brown cartons. We can also accept 85% single carton packing, 100% bulk packing and custom packing according to customer’s special requirements.
